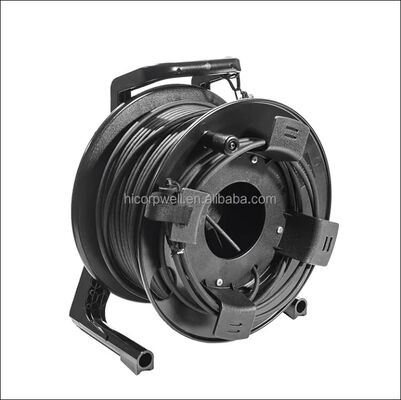

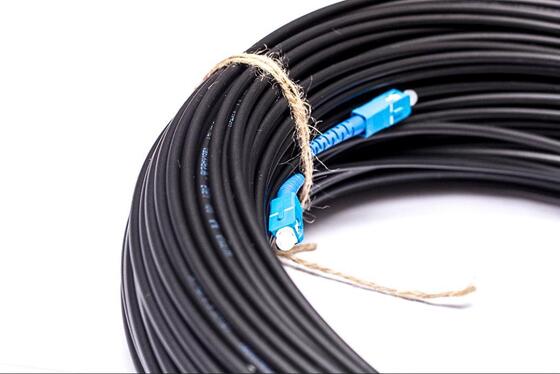

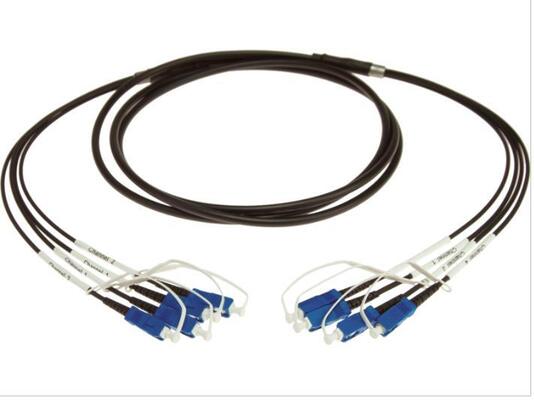

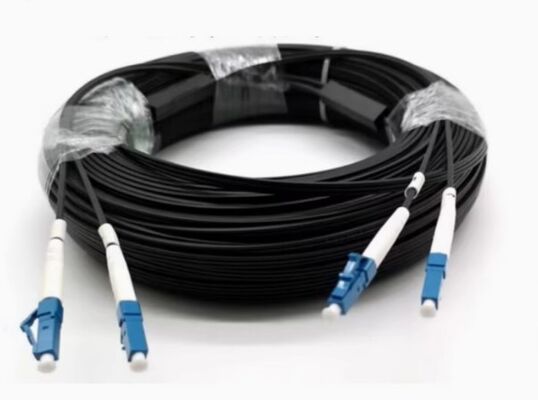

Durable Fiber Optic Patch Cables　SM sc upc outdoor patch cord for Communication Systems

A comprehensive technical and commercial guide for durable Single-Mode (SM) SC/UPC Outdoor Fiber Optic Patch Cables, tailored for communication system deployment with clear specifications, outdoor-specific features, applications, selection criteria, and installation tips.

• SM (Single-Mode): 9/125 μm OS2 fiber (G.652D/G.657A1 common), optimized for 1310nm/1550nm wavelengths, low attenuation, long-haul transmission, no modal dispersion
• SC/UPC: Square Connector with Ultra Physical Contact polish; push-pull latching, ceramic ferrule, return loss ≥50 dB, insertion loss ≤0.3 dB (premium ≤0.2 dB), widely used in telecom/FTTH
• Outdoor-rated: UV-resistant jacket, moisture barrier (gel/dry block), wide temperature range, optional armor (steel/Kevlar/FRP) for rodent/crush protection

• UV & Weather Resistance: LSZH/PE outer sheath prevents sun-induced brittleness; black jackets reduce heat absorption
• Moisture & Water Blocking: Gel-filled or dry-block longitudinal barriers stop water ingress along the cable core; sealed SC connector boots (IP67 rated) prevent end-face condensation
• Mechanical Robustness: Kevlar yarn for tensile strength; metal/corrugated armor for anti-crush, anti-rodent; minimum bend radius (static 10× cable OD, dynamic 20× OD)
• Temperature Stability: No performance degradation in extreme cold/heat, suitable for desert, high-altitude, and frigid regions
